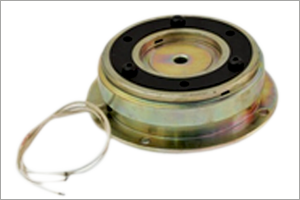

Characterized by compact and sturdy designs, the company’s exhaustive range of Single Disc Clutches & Brakes with electromagnetic characteristic, are being used for power transmission, transfer operations, automatic feed, etc.
In an Electromagnetic Single Disc Clutch, when the current is applied the spring-loaded armature gets pulled towards the friction liner of the Rotor causing the backlash free transmission of torque. On the contrary, in an Electromagnetic Single Disc Brake, when the current is applied the spring-loaded armature gets pulled against the friction liner on the housing due to the torque causing the rotating shaft to come to a halt.
A wide range of sequential stop-start machinery finds use in packaging, sealing, processing and tension control in several industries including Paper Mills, Printers, Textile Manufacturers and packaging specialists, while the innovatively designed machinery backs up the intensive automation of Farming Equipment.
Features:
| Torque Range | 7Nm to 220Nm |
| Outer diameter range | 80mm to 230mm |
| Operating Voltage | 24v |
An Electromagnetic Single disc is Clutches Us an integral part of the manufacturing industry and serves as an important constituent to the machinery that is used as a whole.
It works on a simple mechanism where the current is to be applied in a way that produces very
strong magnetic fields.
The field that is thus generated helps to pull the armature towards the rotor. This further leads to a Transmission that is backlash-free.
The diaphragm spring action results in a rapid disengagement thereby notified residual torque is created.
These Electromagnetic Single Disc Clutches have very important uses in the machinery that is assembled together.
They find wide-scale uses in gearboxes that are oil-less, motor vehicles, and various other types of special machinery.
This may include Machines used for packaging, Dairy related machines, Textile industry, conveyors, sugar industry, etc.
It is due to the widespread application of these parts that they are in high demand and constantly developing for best usage.
We at Narsipur group are manufacturers of a wide range of Single disc electromagnetic Clutches ranging from various torque levels.
These machine parts are highly functional and hence require a low level of maintenance due to their best make and finish.
Are you looking for a similar product to accelerate your machinery process, then we are here to help.
We produce a range of other mechanical parts as well and can care for the diverse needs of our clients in this segment.
We understand how fast the manufacturing industry is evolving and hence try to keep our client's needs in mind and create products accordingly.
Contact us and the best Electromagnetic Single Disc Clutch Manufacturers in India and we shall help you find the best machinery product for your growing needs.
